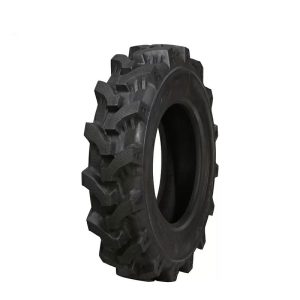

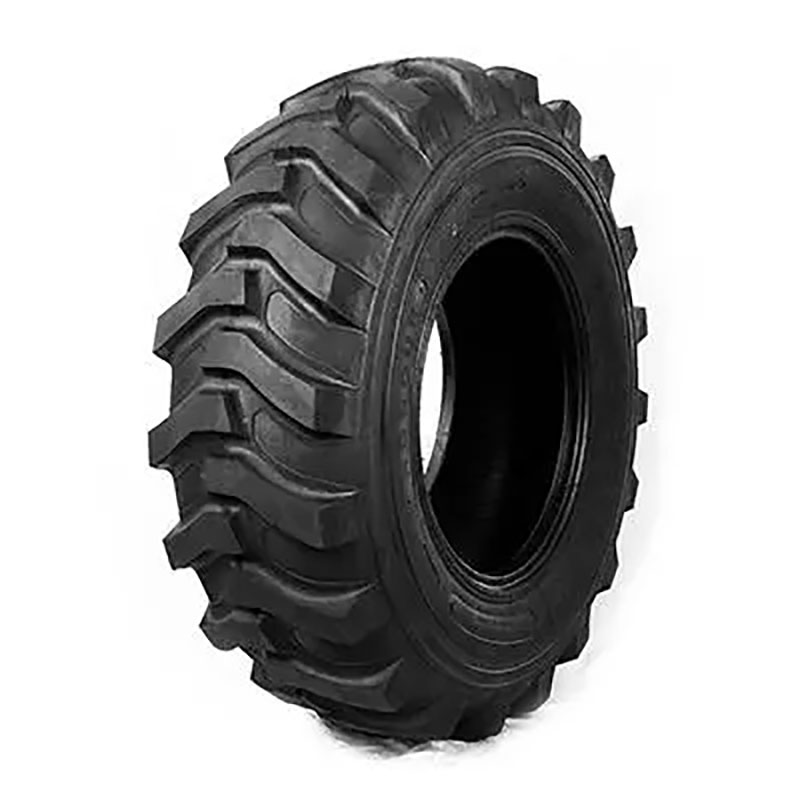

Industrial tire

SKU: c1dc61c85043 Category:
Specification Hierarchy Standard rim STANDARD New tire inflation size (mm) single tire load Corresponding air pressure Pattern depth (mm)
TIRE SIZE PLY RIM INFLATED SIZE OF NEW TIRE (Kg) (Kpa)
RATING Overall Diameter Section width LOAD PRESSURE
600-12 8 4.50E 640 165 405 250 28
600-14 8 4.50E 690 165 450 250 29
650-16 8 5.00F 765 180 565 250 30
750-16 8 5.50F 815 205 650 280 30
750-20 10 5.50F 910 205 695 240 30
8.3-20 10 W7 900 210 695 240 32
8.3-24 10 W7 995 210 810 250 35
9.5-20 10 W8 965 240 810 250 33
9.5-24 10 W8 1050 240 940 280 36
11.2-20 10 W10 1005 285 1085 240 50
11.2-24 10 W10 1105 285 1045 240 50
11.2-28 10 W10 1205 284 1300 240 54
12.4-24 10 W11 1175 315 1640 290 50
12.4-28 10 W11 1270 315 1510 230 52
12.4-48 12 W11 1800 305 3560 280 66
13.6-24 10 W12 1210 345 2200 360 56
14.9-24 10 W13 1295 378 1910 230 56
14.9-26 10 W13 1335 378 1960 230 56
15L-24 10 DW14 1352 410 2800 250 65
16.9-28 12 W15L 1458 430 2560 250 62
16.9-34 12 W15L 1600 430 2600 210 65
18.4-30 12 W16L 1565 467 2800 190 68
18.4-38 12 W16L 1800 467 3475 230 68
18.4-42 12 W16 1400 467 3700 210 75
19.5L-24 12 CW16 1350 495 2140 210 65
20.8-38 12 W18L 1870 528 3900 200 75
23.1-26 12 DW20 1660 587 3246 170 75
28L-26 12 DW25 1648 715 3610 170 75
